TL-SL1218MP(UN)2.0_Overview_02_normal_1595313605532l

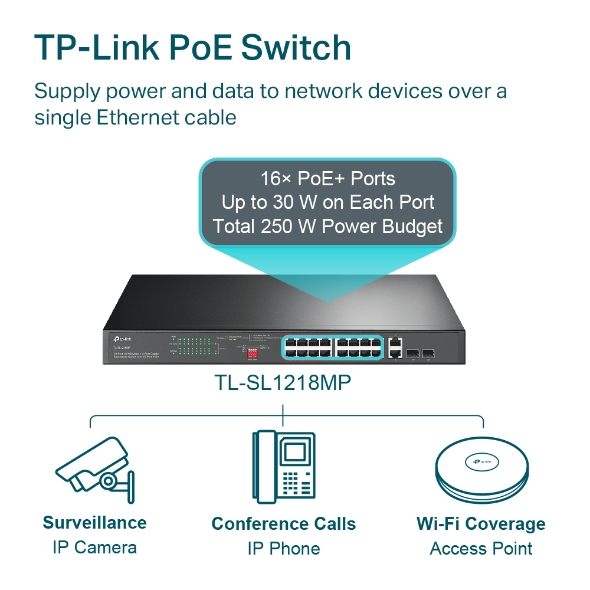

TL-SL1218MP | 16-Port 10/100Mbps + 2-Port Gigabit

16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.^*
Up to 250 m data and power transmission under extend mode specially designed for surveillance system.^**
Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
Isolation Mode allows one-click client traffic separation for higher security and performance.
Easy to use, with no configuration and installation needed.

₦108,000.00

Product Description

^*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

^**The speed of the ports which are under extend mode will be downgraded to 10 Mbps. Actual transmission distance may vary from the quality of the cables.

HARDWARE FEATURES
Interface	• 16 PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 2× Combo Gigabit SFP Slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)	• Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Max Power Consumption	• 15.0 W (no PD connected) • 285.8 W (with 250 W PD connected)
Max Heat Dissipation	• 51.1 BTU/h (no PD connected) • 974.6 BTU/h (with 250 W PD connected)

PERFORMANCE
Switching Capacity	7.2 Gbps
Packet Forwarding Rate	5.36 Mpps
MAC Address Table	8K
Jumbo Frame	10 KB

SOFTWARE FEATURES
Advanced Features	• Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control
Transmission Method	Store-And-Forward

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• TL-SL1218MP • Power Cable • Installation Guide • Two mounting brackets and the fittings
Environment	• Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

For additional version information, please go to the support page.
